In any electrical system—whether in factories, commercial buildings, or power grids—electrical switchgear plays a vital role in ensuring safety, control, and stability. These components are designed to protect people and equipment from electrical faults, manage power distribution, and support maintenance operations.
In this article, we’ll explore how different types of electrical switchgear work, including MCBs, MCCBs, ACBs, contactors, and isolators. Understanding their operation helps electrical engineers and technicians build safer and more efficient systems.
What Is Electrical Switchgear?
Electrical switchgear refers to devices used to connect and disconnect electrical circuits. Their main functions include controlling power flow, isolating parts of the circuit for maintenance, and protecting against overloads, short circuits, or leakage currents.
These devices are commonly used in residential buildings, industrial plants, data centers, and power substations.
How Electrical Switchgear Works
1. MCB (Miniature Circuit Breaker)
- Function: Protects circuits from overcurrent and short circuits in residential and light industrial applications.
- Working Principle:
- For short circuits, an electromagnetic coil activates and instantly trips the circuit.
- For overloads, a bimetallic strip bends due to heat, causing the switch to trip after a delay.
2. MCCB (Molded Case Circuit Breaker)
- Function: Handles higher current ratings than MCBs, ideal for industrial use.
- Working Principle:
- Has both thermal and magnetic tripping mechanisms.
- Detects faults and automatically breaks the circuit to prevent damage.
3. ACB (Air Circuit Breaker)
- Function: Used in low-voltage power distribution for large systems.
- Working Principle:
- Uses air as an arc-quenching medium.
- Equipped with intelligent sensors to detect fault conditions and break the circuit safely.

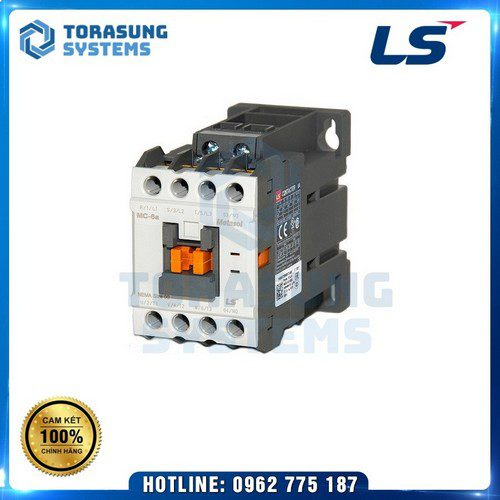

4. Contactor
- Function: Controls motors, lighting, and heavy loads through remote or automated switching.
- Working Principle:
- An energized coil pulls in a magnetic core, closing the circuit.
- When the coil is de-energized, a spring mechanism opens the contacts.
5. RCD (Residual Current Device)
- Function: Protects against electrical leakage that could lead to electric shock.
- Working Principle:
- Monitors current differences between live and neutral wires.
- Trips the circuit if it detects imbalance due to leakage.
6. Isolator (Disconnector Switch)
- Function: Provides a visible and physical break in the circuit for maintenance work.
- Working Principle:
- Operated manually; not designed to interrupt live currents.
- Used only when power is already turned off.
Why Electrical Switchgear Is Important
- Safety: Prevents electrical fires, shocks, and damage to equipment.
- System Control: Allows for organized power distribution and segment isolation.
- Maintenance Efficiency: Simplifies troubleshooting and repair work.
- Automation Support: Enables smart and remote control in modern power systems.
How to Choose the Right Electrical Switchgear
- Match the Load: Select devices based on voltage, current rating, and application.
- Choose Trusted Brands: Consider Siemens, Schneider, ABB, LS, or Mitsubishi.
- Plan the Layout: Ensure devices are accessible and installed per regulations.
- Schedule Inspections: Perform routine maintenance and replace worn-out parts.
Conclusion
Understanding the working principles of electrical switchgear is key to building safe, reliable power systems. Each type—from simple MCBs to advanced ACBs—has specific functions suited to different scenarios. By selecting the right components and maintaining them properly, you reduce the risk of downtime and enhance system protection.
