In every electrical system—whether residential, commercial, or industrial—electrical switchgear devices play a vital role in controlling, protecting, and ensuring the stable operation of power distribution. Understanding the functions of these devices and how to select the appropriate type can significantly improve system safety, reduce operational costs, and minimize risks.
What Are Electrical Switching Devices?
Electrical switchgear devices are components used to control the flow of electricity within a system. They can connect or disconnect circuits either manually or automatically, depending on operational conditions. Here’s what makes them indispensable:
1. Protection of the Electrical System
Devices such as MCBs, MCCBs, ACBs, and ELCBs automatically interrupt the current when they detect faults like overloads, short circuits, or ground leaks, thus preventing fires and equipment damage.
2. Ensuring Human Safety
In both homes and factories, electrical switching devices help protect users from electric shocks by instantly cutting power in dangerous conditions.
3. Flexibility in Maintenance and Operation
They allow sections of the system to be isolated for maintenance or upgrades without shutting down the entire system, saving time and increasing safety.
Common Types of Electrical Switching Devices

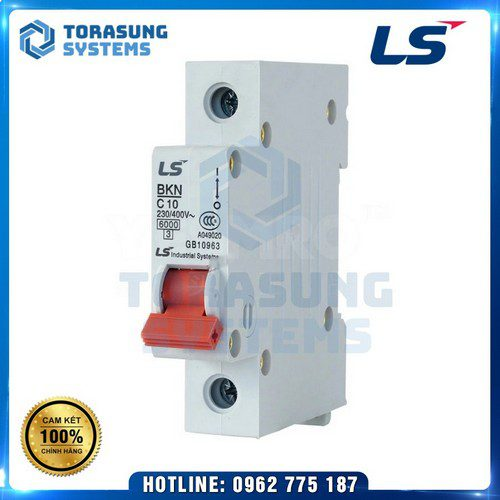

1. MCB (Miniature Circuit Breaker)
- Function: Trips during overload or short circuits in low current applications.
- Applications: Homes, small shops, office spaces.
- Advantages: Compact, easy to install, cost-effective.

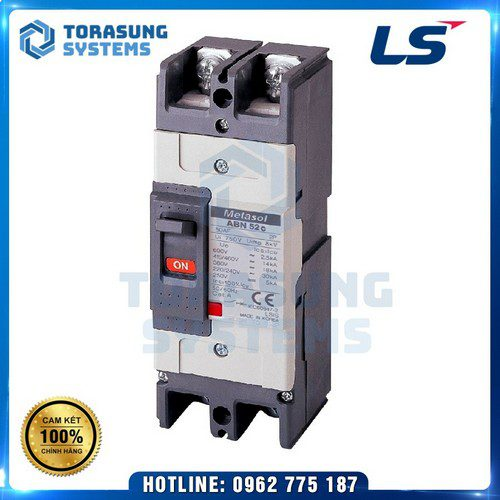

2. MCCB (Molded Case Circuit Breaker)
- Function: Offers higher current capacity and adjustable trip settings.
- Applications: Industrial power systems, large buildings.
- Advantages: Handles larger currents, more customizable.
3. ACB (Air Circuit Breaker)
- Function: Protects medium-voltage systems with advanced trip units.
- Applications: Industrial switchboards, substations.
- Advantages: Remote control, programmable logic, and monitoring.

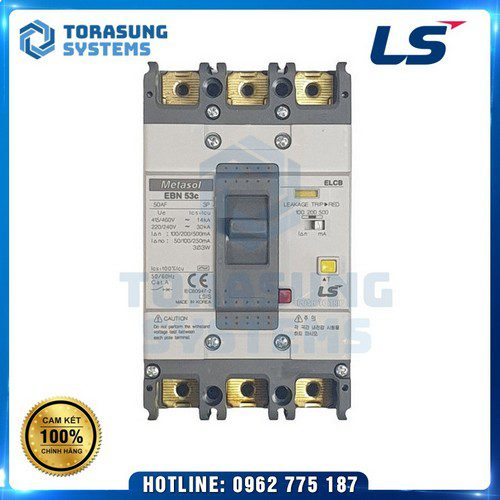

4. ELCB/RCD (Earth Leakage Circuit Breaker/Residual Current Device)
- Function: Detects and interrupts current leakage to prevent electrocution.
- Applications: Wet areas like kitchens and bathrooms.
- Advantages: High level of user safety.
5. Contactors and Relays
- Function: Automatically switch electrical loads on/off via control signals.
- Applications: Motor control, industrial automation.
- Advantages: Ideal for integration in automated systems.
How to Select the Right Electrical Switchgear Devices
Choosing the appropriate electrical switchgear devices involves careful evaluation of several factors:
1. Rated Current and Breaking Capacity
Match the device’s specifications with your system’s expected load and potential fault currents to avoid undersized or oversized protection.
2. Installation Environment
For dusty, humid, or high-temperature environments, choose devices with high IP protection and heat-resistant materials.
3. Compliance with International Standards
Look for certifications like IEC, CE, or UL to ensure product safety and reliability.
4. Control and Expansion Capabilities
In complex systems, opt for devices that support remote control and monitoring, which are essential for smart grids and automation.
Best Practices for Using Electrical Switching Devices
- Regular Inspection: Test and inspect devices periodically to ensure functionality.
- Correct Installation: Always follow the manufacturer’s guidelines and wiring diagrams.
- Proper Replacement: Replace faulty devices with the same or compatible models—never interchange MCBs with MCCBs without proper analysis.
Conclusion
Electrical switchgear devices are critical to the safety, reliability, and efficiency of electrical systems across all sectors. By understanding their types, functions, and selection criteria, you can make well-informed decisions that protect both equipment and lives. As power systems become smarter and more complex, choosing the right devices will only grow in importance.
