In industrial environments where power demand is high and system reliability is critical, ensuring electrical safety is a top priority. This is where MCCB (Molded Case Circuit Breaker) comes into play. MCCB is a vital component used to protect electrical circuits from damage caused by overloads, short circuits, or equipment faults. It provides a reliable method of breaking the circuit automatically in hazardous conditions, making it a must-have for modern industrial power systems.
Understanding MCCB and Its Importance

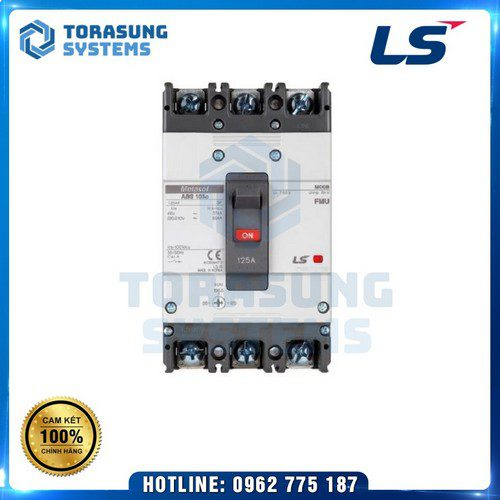

MCCB stands for Molded Case Circuit Breaker, a type of electrical protection device designed to handle higher current ratings (typically above 100A) and break fault currents quickly to prevent further damage. MCCBs are a step above the more common MCBs (Miniature Circuit Breakers), offering enhanced capacity and robust features for industrial-scale use.
MCCBs are widely used in power distribution networks, industrial control panels, and large-scale machinery. These devices can be configured to fit a variety of operational requirements, including adjustable trip settings and remote monitoring capabilities.
Applications of MCCB in Industrial Electrical Systems
MCCB is extensively used across industrial facilities for its ability to manage large current loads while ensuring electrical safety. Some common areas of application include:
1. Main Power Distribution Panels
In large factories and manufacturing plants, MCCBs are installed in the main distribution boards to protect against high fault currents. They serve as the primary defense line, isolating faulty sections quickly to avoid cascading failures.
2. Motor Protection and Control
Industrial motors often operate under heavy loads, and MCCBs ensure they are protected from overcurrent and overheating. MCCBs also offer reliable protection for motor control centers (MCCs), enhancing operational longevity.
3. Generator and Transformer Protection
Generators and transformers are expensive assets that require dependable circuit protection. MCCBs safeguard these units from potential faults that could cause irreversible damage.
4. Power Backup Systems
In UPS systems or backup generators, MCCBs manage seamless switching between power sources and prevent faults from affecting critical operations.
5. Industrial Automation Systems

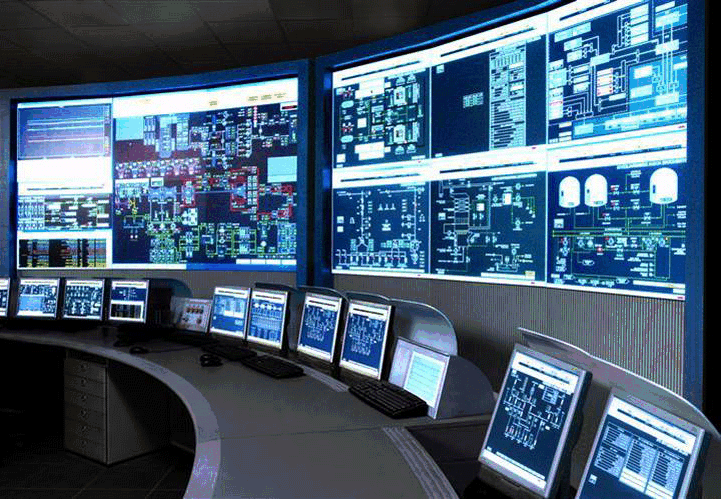

MCCBs support integration with PLCs and SCADA systems, making them ideal for smart manufacturing environments. They enable automated fault detection and real-time system diagnostics.
Key Benefits of Using MCCB in Industrial Settings
Using MCCB in industrial power systems offers a wide range of operational and safety benefits:
✅ High Current Handling Capacity
MCCBs can handle significantly larger currents compared to MCBs, ranging from 100A to over 1000A. This makes them ideal for heavy-duty industrial equipment and large-scale installations.
✅ Adjustable Trip Settings
Modern MCCBs allow users to fine-tune the thermal and magnetic trip levels, giving precise control over fault protection based on the load profile.
✅ Enhanced Safety
MCCBs minimize electrical hazards by instantly disconnecting faulty circuits. This rapid response helps reduce fire risk, equipment damage, and system downtime.
✅ Durability and Longevity
Designed to endure tough industrial conditions such as vibration, high temperatures, and dust, MCCBs offer long service life with minimal maintenance requirements.
✅ Remote Monitoring and Control
Smart MCCBs can be integrated with industrial automation systems, enabling real-time monitoring, remote fault diagnosis, and predictive maintenance alerts.
✅ Modular Design
Most MCCBs are modular and easy to install or replace, reducing maintenance time and allowing quick upgrades or system expansions.
MCCB vs MCB: When to Choose MCCB?
While both MCCBs and MCBs are used for circuit protection, they are suited for different scales and applications:
- Choose MCCB when:
- Current requirements exceed 100A.
- The system involves high fault levels.
- Adjustable trip characteristics are necessary.
- Remote monitoring or automation is desired.
- The application is in a harsh industrial environment.
- Choose MCB when:
- You have a low-current residential or commercial load.
- Simplicity and cost-effectiveness are more important than advanced features.
Selecting the Right MCCB for Your System
Choosing the right MCCB involves evaluating several key factors:
- Rated current (In)
- Interrupting capacity (Icu/Ics)
- Number of poles
- Type of application (motor, generator, feeder, etc.)
- Environmental conditions (humidity, temperature, dust)
Consulting with an electrical engineer or automation specialist can help ensure optimal selection for your specific use case.
Conclusion
MCCB is a cornerstone of modern industrial power systems. Its versatility, safety features, and ability to handle high electrical loads make it an indispensable choice for factories, data centers, and any high-demand power environment. By understanding its applications and benefits, businesses can protect their assets, enhance system reliability, and ensure continuous operation without compromise.
If you’re upgrading or designing an industrial power system, integrating MCCBs into your electrical infrastructure is a smart investment in long-term safety and efficiency.
